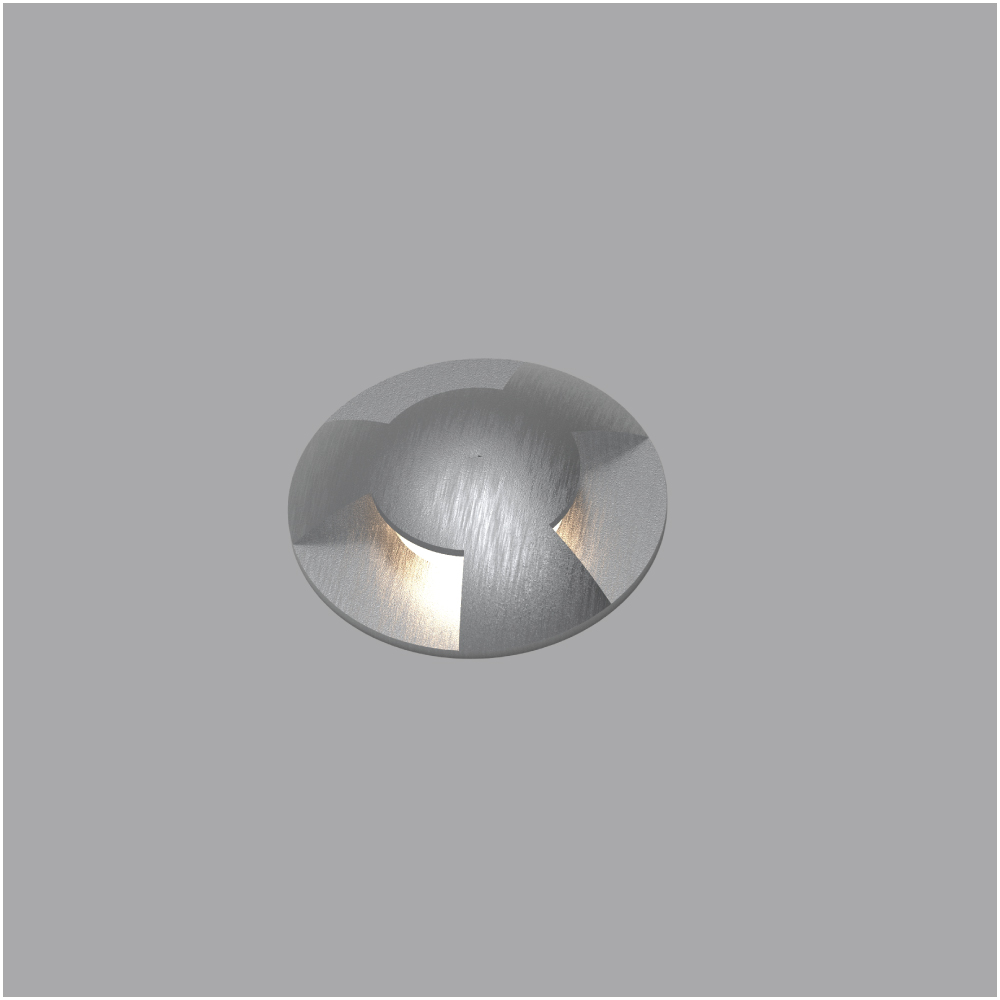

PLENIX-90 3WAY

Description

Plenix-90 3Way light features has:

• Luminaire housing of stainless steel

• IP67, High Ingress Protection against dust & moisture

• Ideal heat dissipation with good quality heat sink

• One-way light distribution

• Beam angle 3-90°

• LED 3535/3 DOME

• Burial mounting

• Surge 2.5KV

• Uniform distribution of light in the outdoor environment

• High quality toughened glass to ensure the safety of the fixture

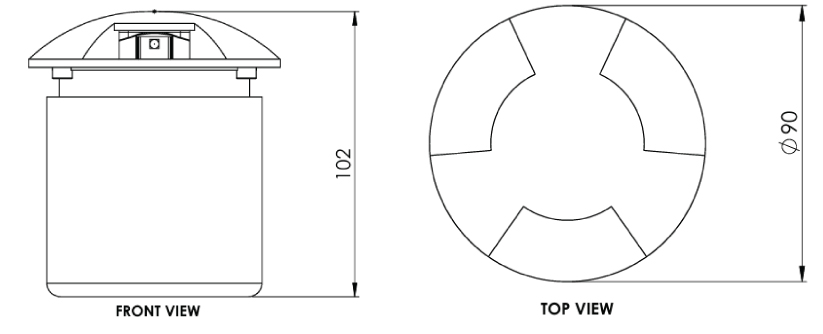

Single Line Diagram

PLENIX-90 3WAY PATHWAY LIGHT

Specifications

QUICK INFO

1. L70 @50,000h
2. Tempered Glass
3. SDCM < 3

CCT (COLOUR TEMPERATURE)

1. 3000K/ 4000K/ 5700K

CRI

1. CRI>80

CONTROL

1. Non-Dimmable/ Dali-Dimmable

MOUNTING TYPE

1. Inground
