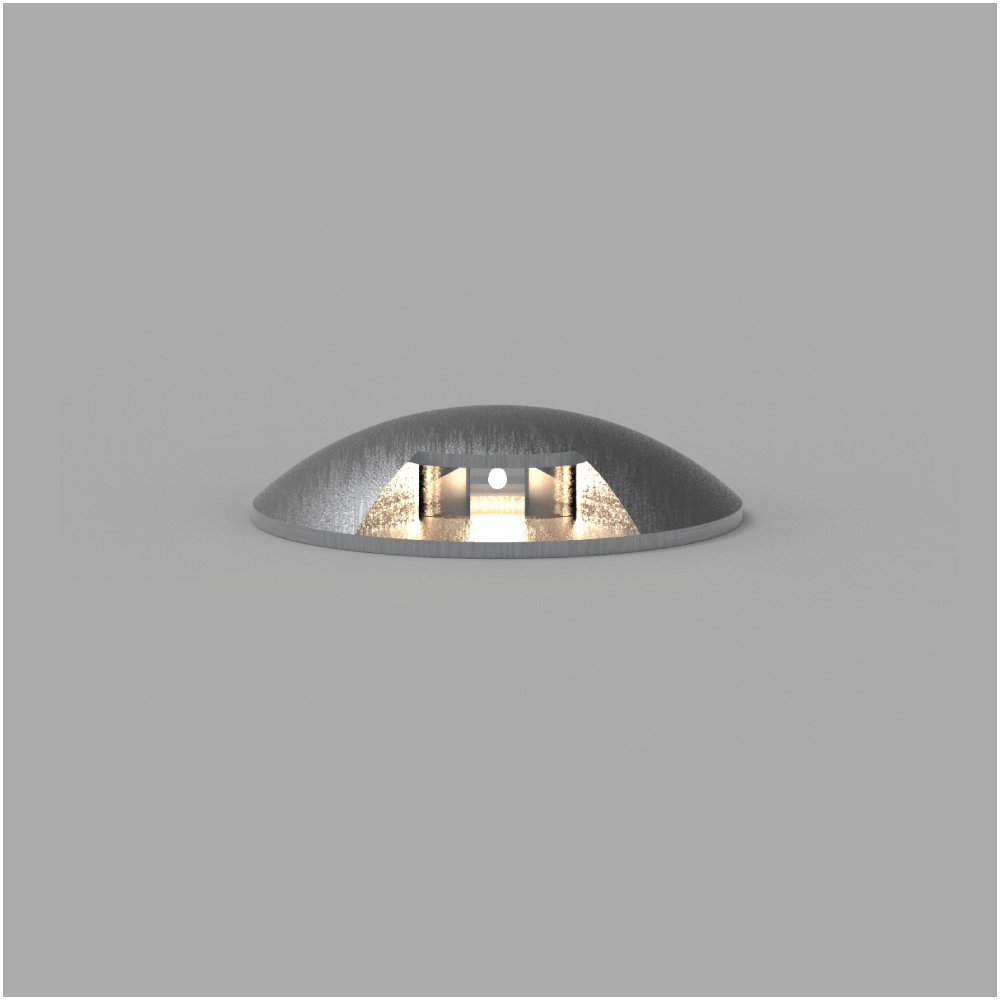

PLENIX-90 1WAY

Description

Plenix-90 1Way light features has:

• Luminaire housing of stainless steel

• IP65, High Ingress Protection against dust & moisture

• Ideal heat dissipation with good quality heat sink

• One-way light distribution

• Beam angle 1-90°

• LED 3535/1 DOME

• Burial mounting

• Surge 2.5KV

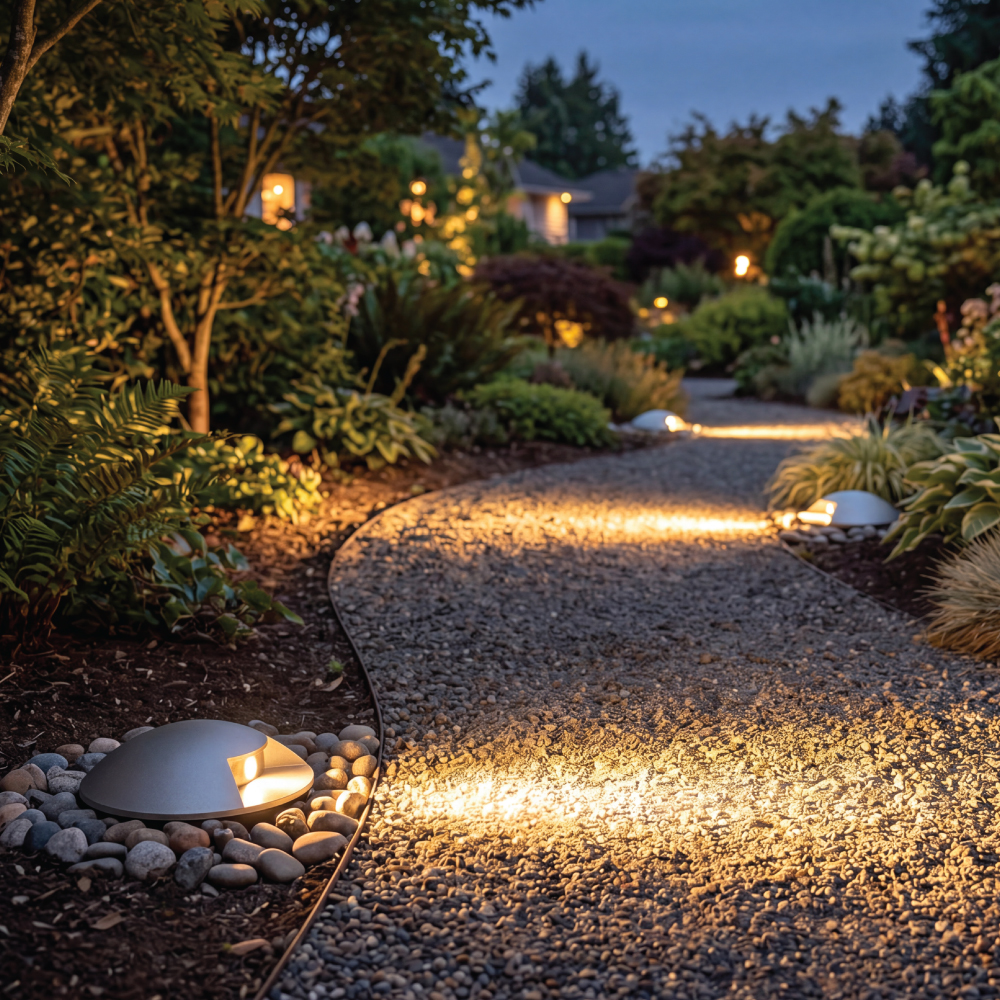

• Uniform distribution of light in the outdoor environment

• High quality toughened glass to ensure the safety of the fixture

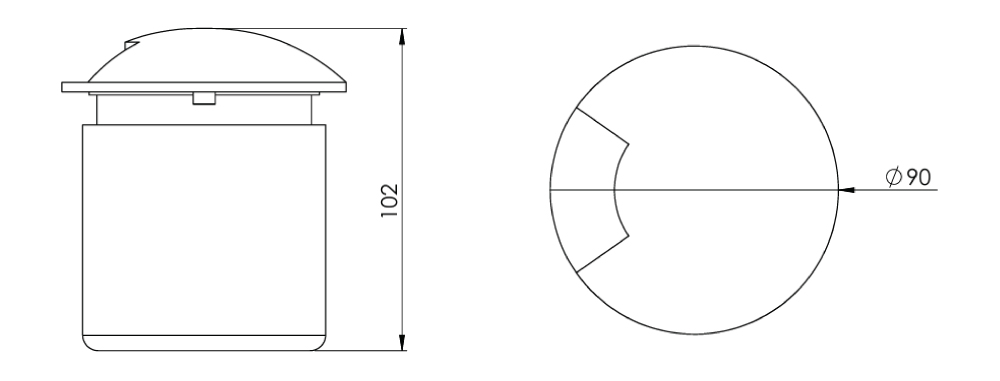

Single Line Diagram

PLENIX-90 1WAY PATHWAY LIGHT

Specifications

QUICK INFO

1. L70 @50,000h
2. Stainless Steel
3. Tempered Glass

CCT (COLOUR TEMPERATURE)

1. 3000K/ 4000K/ 5700K

CRI

1. CRI>80

CONTROL

1. Non-Dimmable/ Dali-Dimmable

MOUNTING TYPE

1. Inground
