P2 Horizontal

Description

P2 Horizonatl Wall Grazer Light has :

 • Luminaire housing made of extruded aluminium

• Optic family is suitable for challenging environments and outdoor applications.

• Lens based encapsulated linear wall Grazer

• IP66, High Ingress Protection against dust & Water Immersion

• Accentuates surface textures better

• Reduces hotspots and dead zones

• Custom engineered

• Precision optics provide 15°/35°/55°/10X55° beam

• Accommodates a wide range of wall heights

• Perfect longitudinal glare reduction

• Uniform illumination

• Energy efficient LED with e ective colour rendering

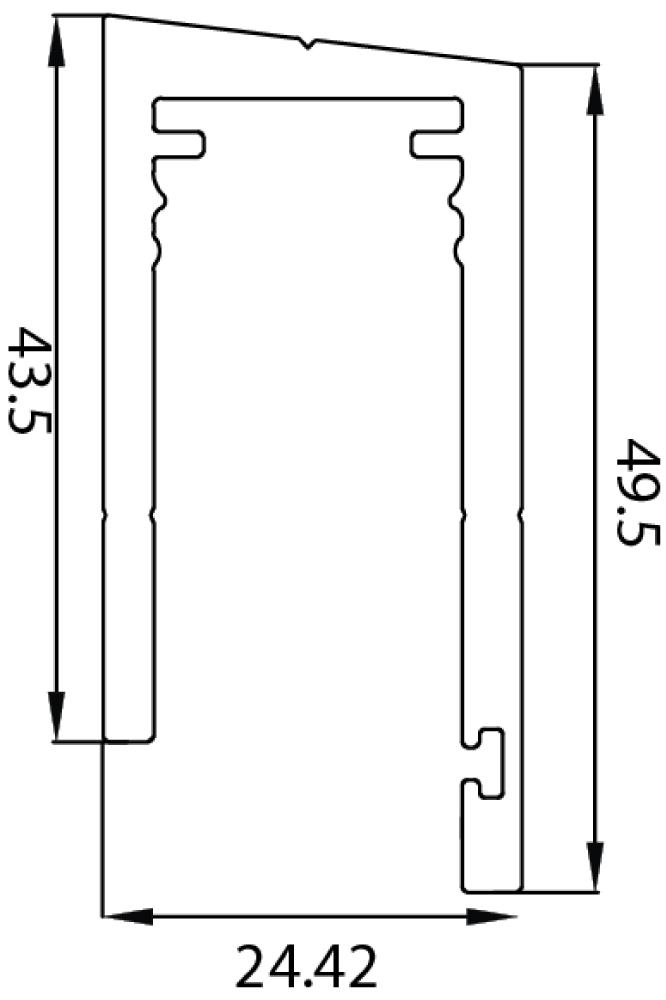

Single Line Diagram

P2 HORIZONTAL

Specifications

QUICK INFO

1. Aluminium Die-cast
2. 2700K, 3000K, 4000K
3. L70 @50,000h
4. SDCM < 3
5. Lens

CRI

1. CRI>80

CONTROL

1. Non-Dimmable/ Dali-Dimmable

MOUNTING TYPE

1. Surface
