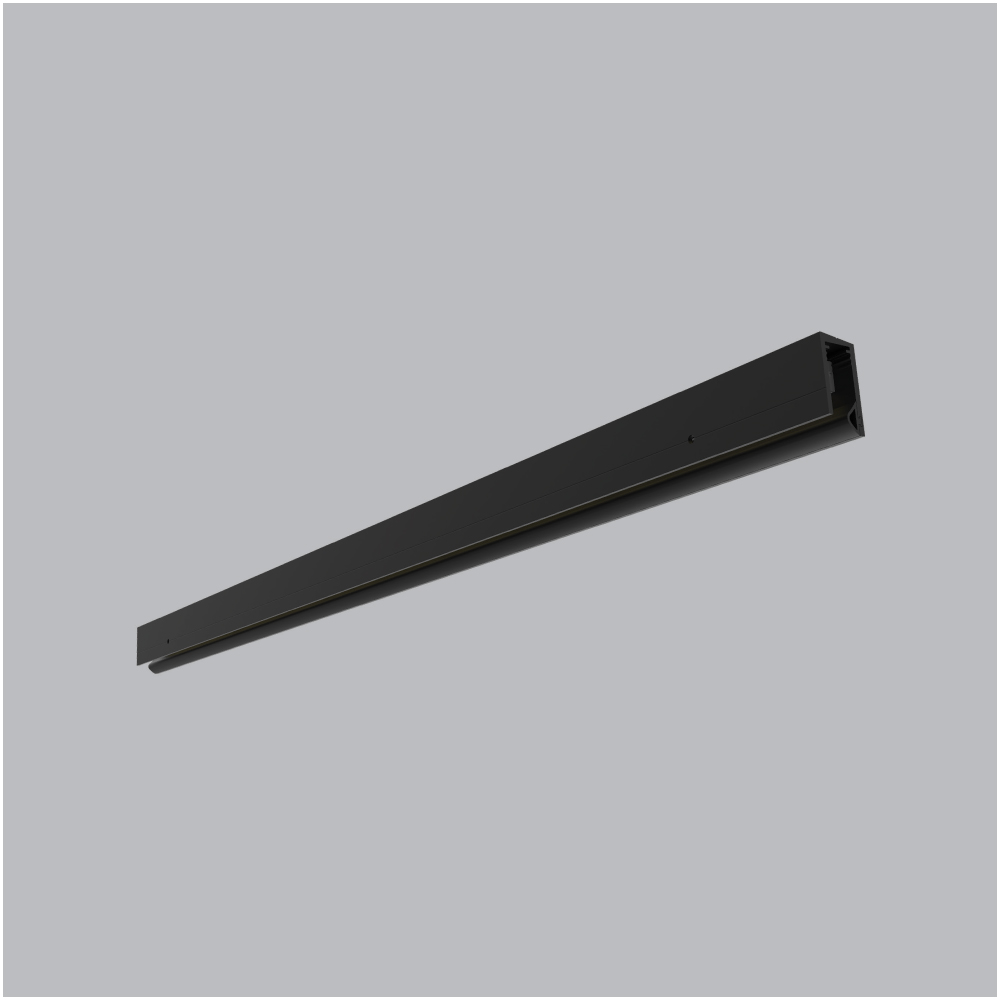

P2 2340

Description

P2 2340 Wall Grazer Light has :

 • Luminaire housing made of extruded aluminium

• Optic family is suitable for challenging environments and outdoor applications.

• Lens based encapsulated linear wall Grazer

• IP66, High Ingress Protection against dust & Water Immersion

• Accentuates surface textures better

• Reduces hotspots and dead zones

• Custom engineered

• Precision optics provide 45° beam

• Accommodates a wide range of wall heights

• Perfect longitudinal glare reduction

• Uniform illumination

• Energy efficient LED with e ective colour rendering

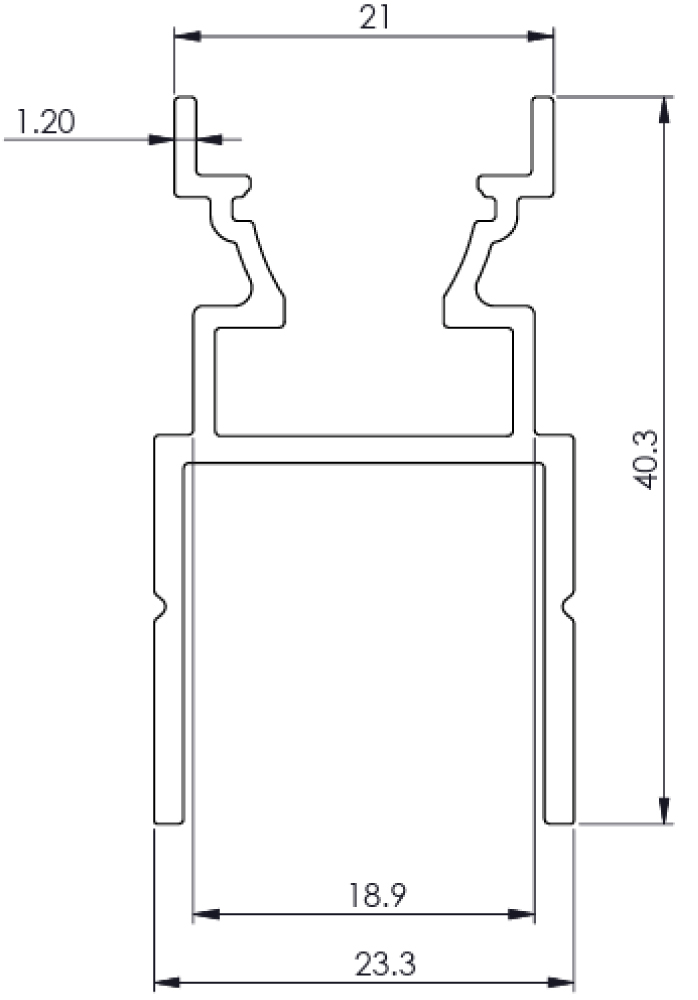

Single Line Diagram


P2 2340 WALL GRAZER






Specifications

QUICK INFO

  1. SDCM < 3
  2. L70 @50,000h
  3. Aluminium Die-cast
  4. 2700K, 3000K, 4000K
  5. Lens & Tempered Glass

CRI

  1. CRI>80

CONTROL

  1. Non-Dimmable/ Dali-Dimmable

MOUNTING TYPE

  1. Surface

PRODUCT DATA & SPECIFICATION DOCUMENTS
