XTREME 145 PEGGY PRISMATIC

Description

Xtreme 145 Peggy Prismatic has :

• Extruded Aluminium Luminaire Housing

• Premium Finish Powder coating

• High performance Prismatic double diffuser

• Glare control & uniform light distribution

• Energy efficient LED with high colour rendering

• LED PCB mounted on insert design with heat sink

• Snap-fit system and no visible screw

• Recessed mounted with tech zone

• Pendant using suspension cable with M6 bolt and fastener

• Bottom opening for easy maintenance

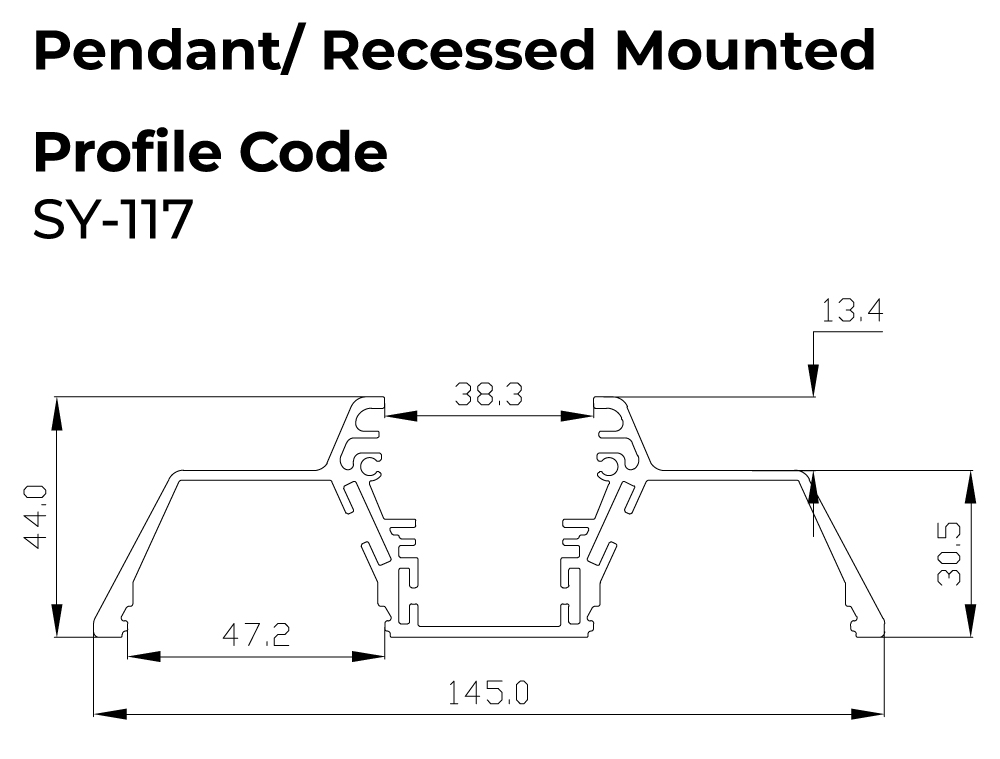

Single Line Diagram


XTREME 145 PEGGY PRISMATIC





Specifications

TYPES

  1. Pendant/ Recessed

QUICK INFO

  1. Double Prismatic Diffuser
  2. CRI >90
  3. Aluminium
  4. 3 SDCM
  5. ON-OFF / ON-OFF (FLICKER FREE)
  6. 3000K/ 4000K/ 5700K/ Tunable White 2700K-6500K
  7. L70 @50,000h
  8. ON/OFF/, DALI-2 DT6 / DALI-2 DT8/ DALI +
