XTO ZORRO
Description
XTO ZORRO
XTO Zorro has::
•Extruded Aluminium Luminaire Housing
• Premium Finish Powder coating

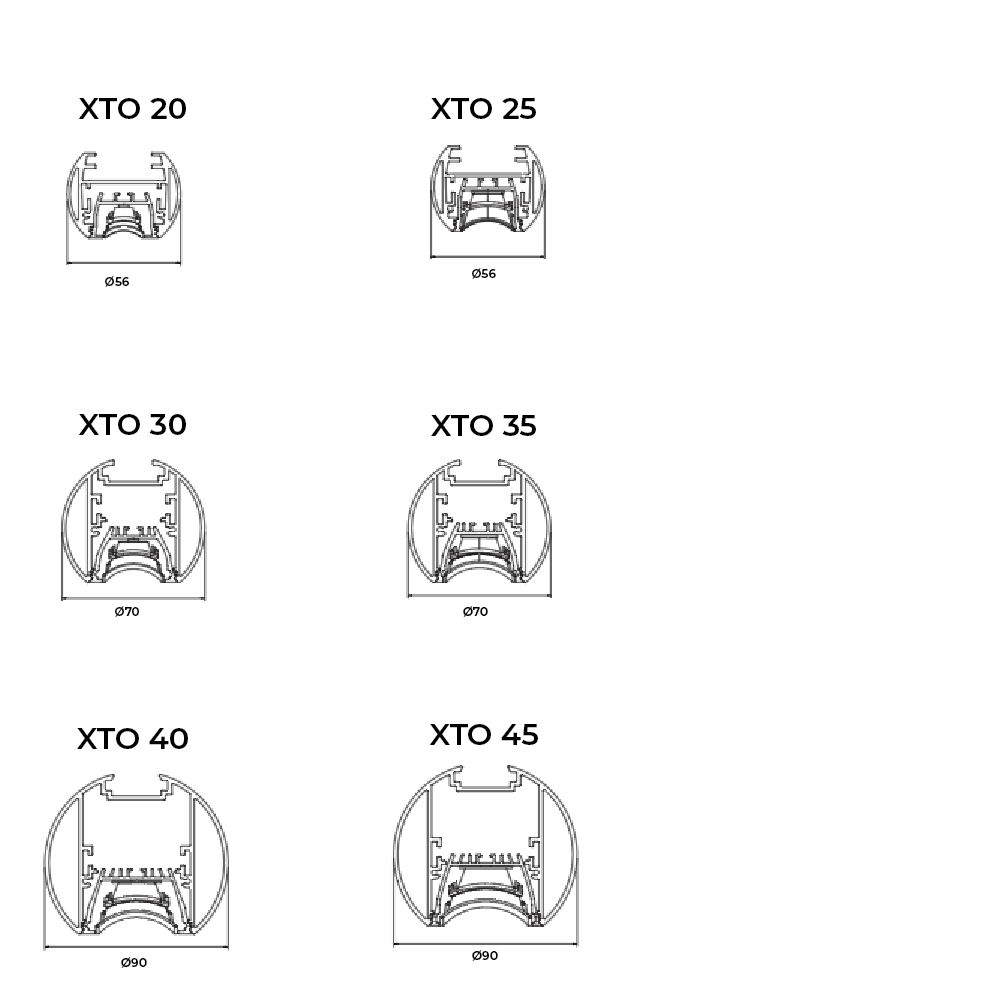

• Range of size/angle design solutions
• Modular design concept
• Micro structure & antiglare optical lens design
• Uniform illumination
• UGR less than 9
• Snap fit system with No visible screw
• Energy efficient LED with high colour rendering
• LED PCB mounted on insert design with heat sink
• Pendant using suspension cable with M6 bolt and fastener
• Bottom opening for easy maintenance
Single Line Diagram
Pendant/ Surface
XTO ZORRO
Specifications
TYPES
- Pendant/Surface
QUICK INFO
- L70 @50,000h
- ON/OFF/, DALI-2 DT6 / DALI-2 DT8/ DALI +
- Lens
- 3000K/ 4000K/ 5700K/ Tunable White 2700K-6500K
- ON-OFF/ON-OFF (FLICKER FREE) / DALI-2 DT6 / DALI-2 DT8 /DALI +
- Aluminium
- 3 SDCM
- CRI >90
