VIRAJ DALINE

Description

Viraj Daline light features has:

• Luminaire housing of extruded aluminium

• High-performance Reflector

• Snap-fit system No visible screw

• Better refractive index to reduce glare

• LED PCB mounted on insert design with heat sink

• Bottom opening for easy maintenance

• Pendant with cable suspension

• M6 bolt for M6 fastener

• Energy-efficient LED with high color rendering

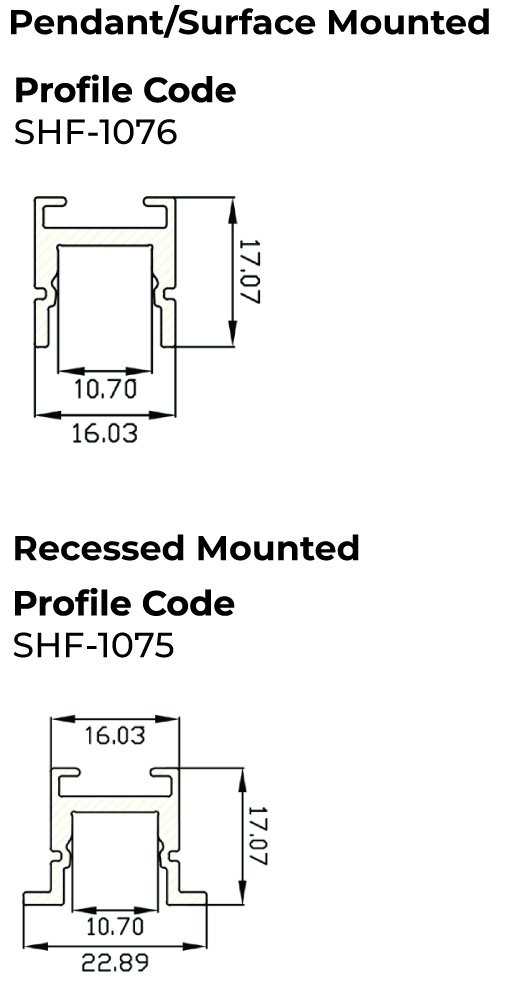

Single Line Diagram

VIRAJ DALINE

Specifications

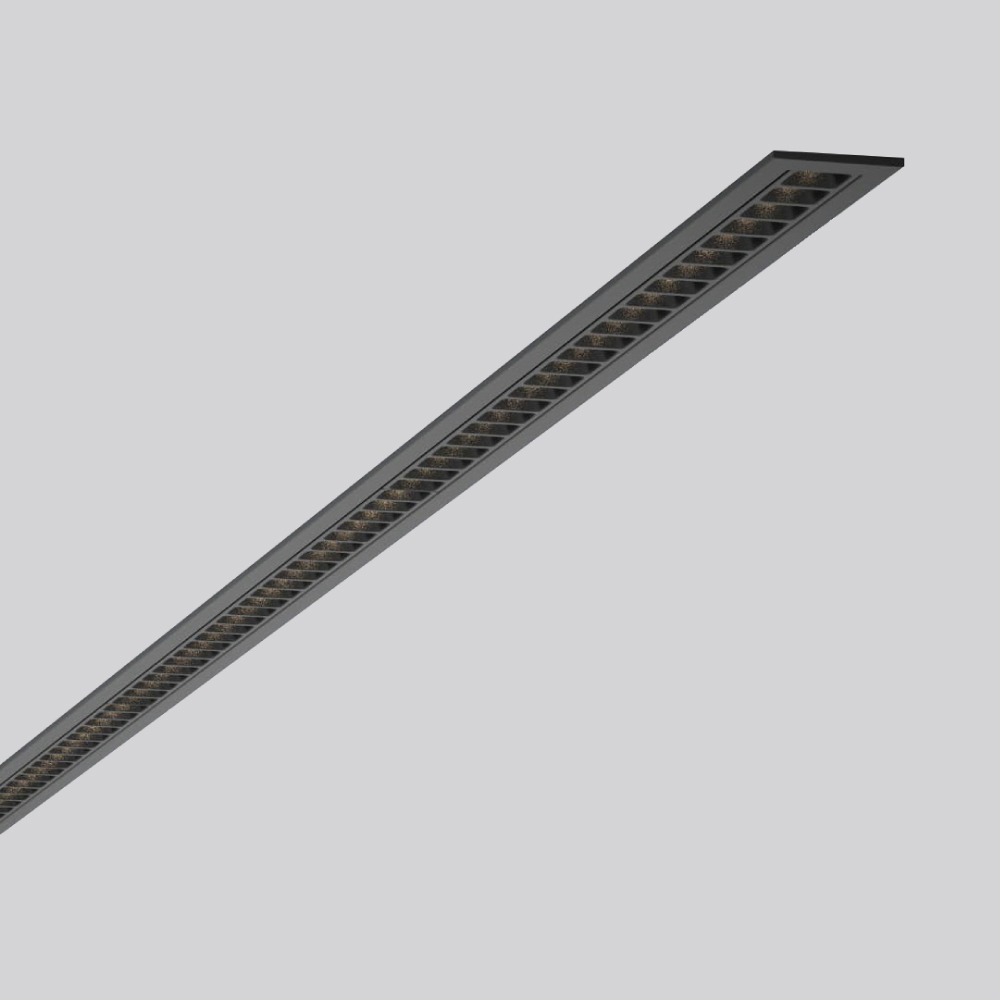

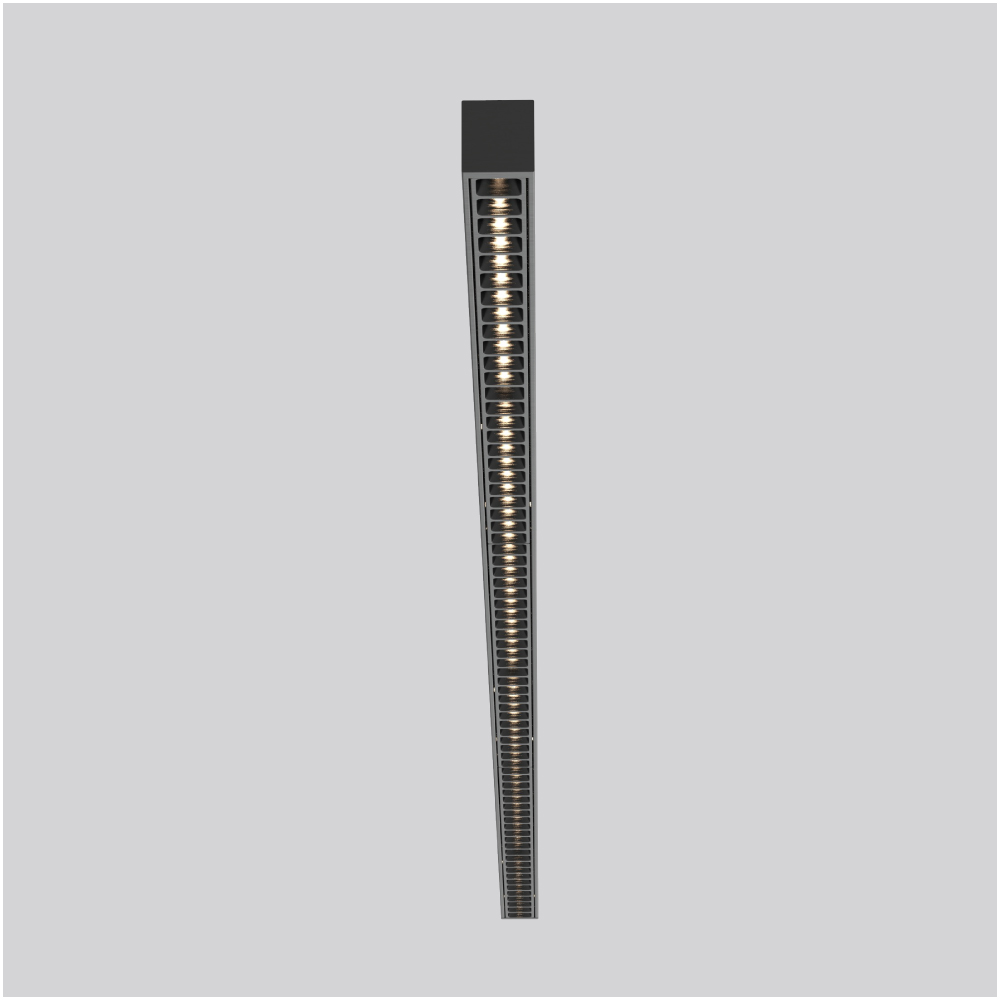

1. Pendant/Surface/Recessed

1. L70 @50,000h
2. Lens & Reflector
3. SDCM < 3
4. 3000K/ 4000K/ 5700K/ Tunable White 2700K-6500K
5. ON-OFF/ON-OFF (FLICKER FREE) / DALI-2 DT6 / DALI-2 DT8 /DALI +
6. Aluminium Die-cast

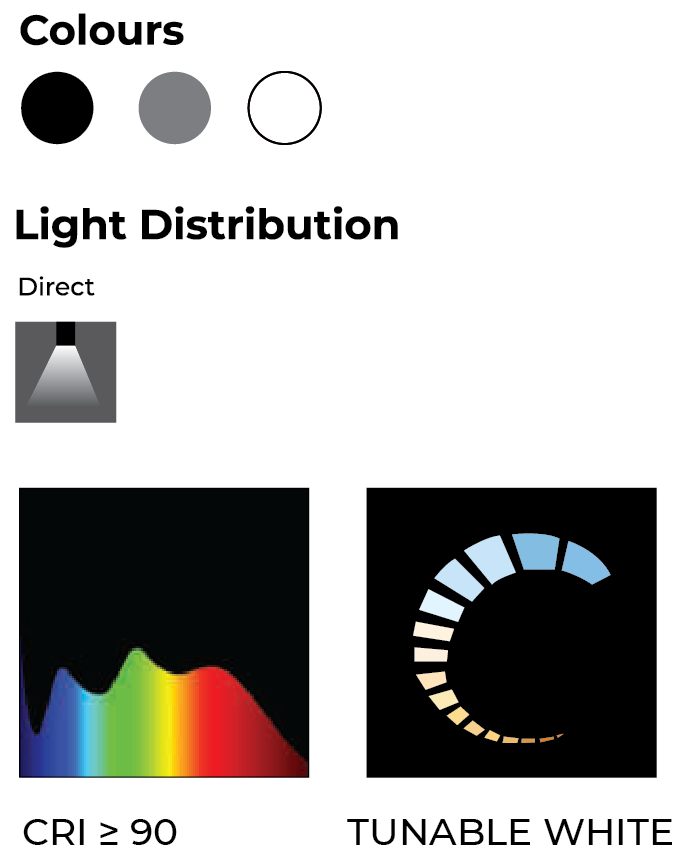

7. CRI >90
