VIRAJ 52

Description

Viraj 52 sleek and slim linear fixture has :

• Extruded Aluminium Luminaire Housing

• Premium Finish Powder coting

• High performance Micro prismatic diffuser

• Snap fit system, No visible screw

• Energy efficient LED

• LED PCB mounted on insert design with heat sink

• Pendant using suspension cable with M6 bolt and fastener

• Bottom opening for easy maintenance

• Better refractive index to reduce glare

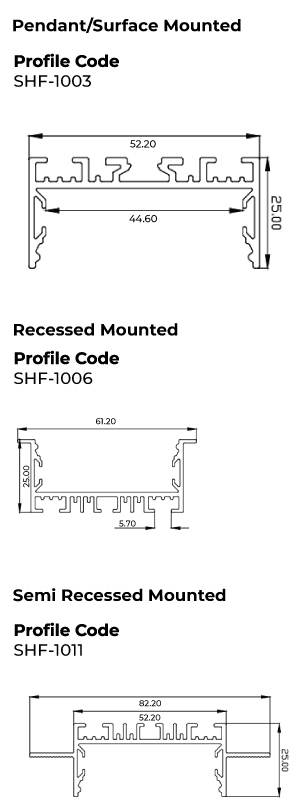

Single Line Diagram


VIRAJ 52






Specifications

TYPES

  1. Pendant/Surface/Recessed

QUICK INFO

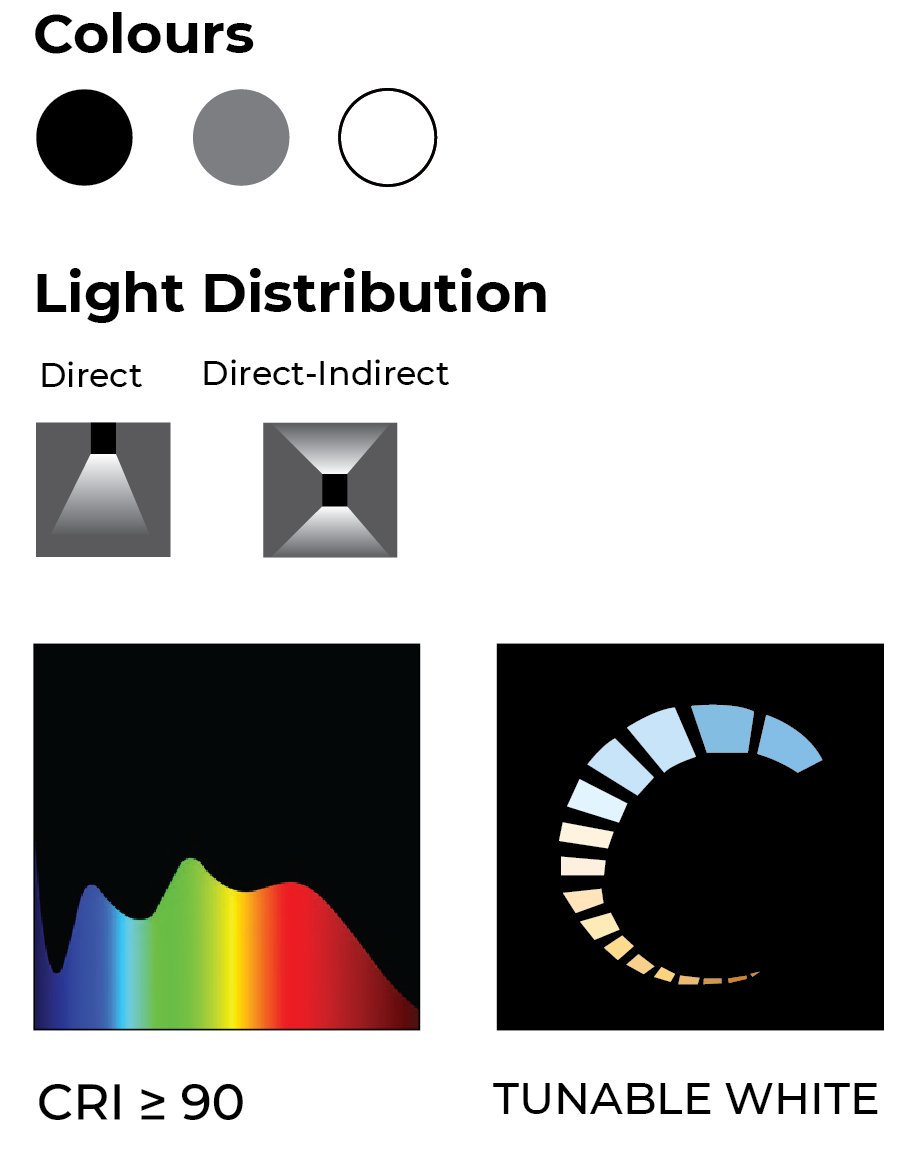

  1. CRI >90
  2. L70 @50,000h
  3. Aluminium Die-cast
  4. SDCM < 3
  5. 3000K/ 4000K/ 5700K/ Tunable White 2700K-6500K
  6. ON-OFF/ON-OFF (FLICKER FREE) / DALI-2 DT6 / DALI-2 DT8 /DALI +
  7. Prismatic Diffuser

PRODUCT DATA & SPECIFICATION DOCUMENTS
