UNITY-SM 4056

Description

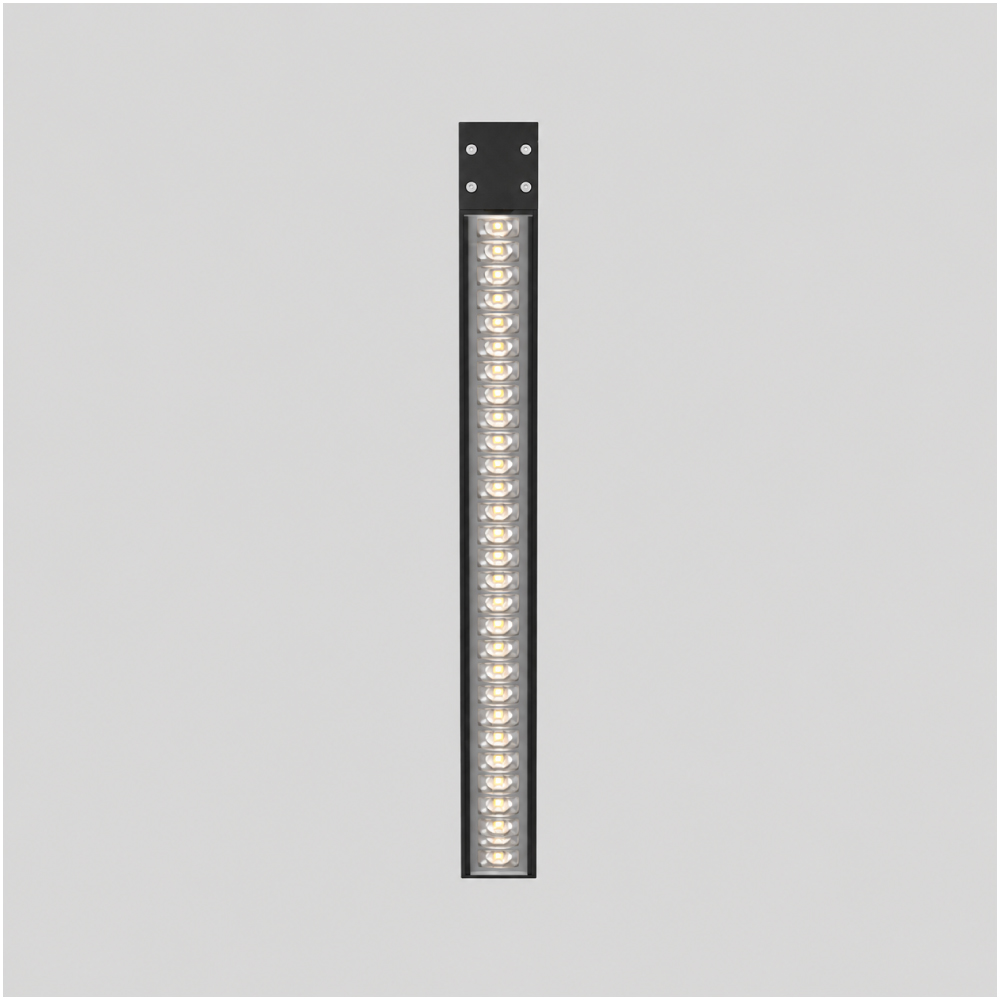

Unity-SM 4056 Surface linear light fixture has:

·        Luminaire housing of Die-Cast Aluminium

·        IP66, High Ingress Protection against dust & moisture

·        Ideal heat dissipation with good quality heat sink

·        COB (Chip on Board) technology with Honeycomb accessories

·        Burial mounting

·        Beam Angle 5°/ 10°/15°/ 20°/ 25°/30°/45°/ 60°/ 10X20°/ 10X30°/ 10X45°/ 10X60°/ 25ASY10°

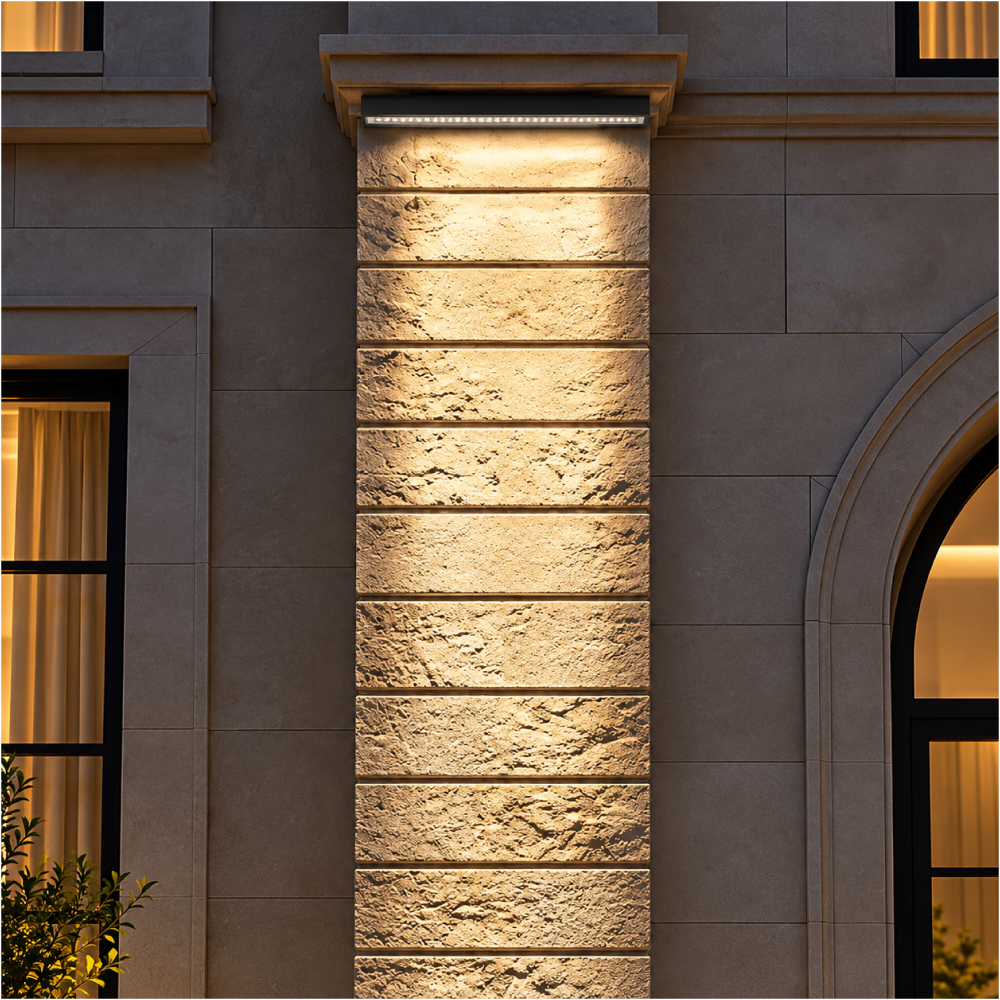

·        Uniform distribution of light in the outdoor environment

·        High quality toughened glass to ensure the safety of the fixture

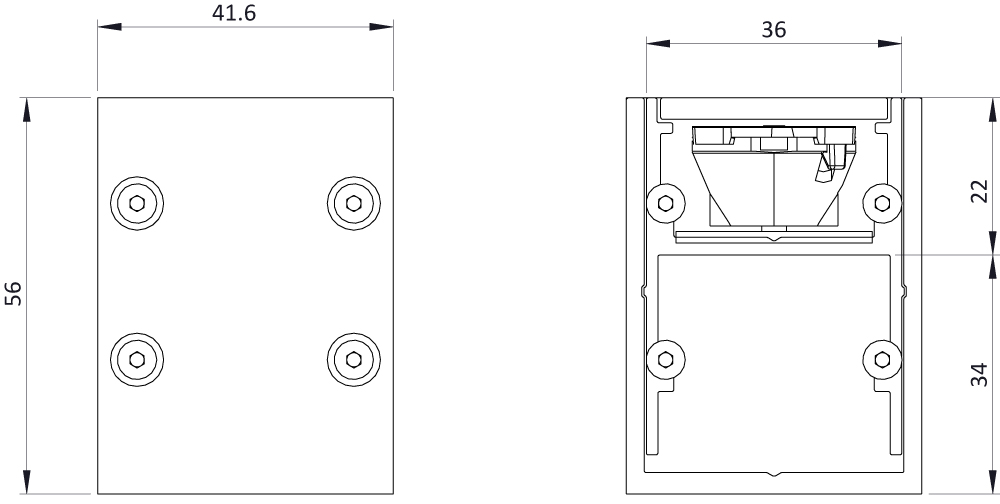

Single Line Diagram

UNITY-SM 4056 SURFACE LINEAR

Specifications

QUICK INFO

1. Aluminium Die-cast
2. Clear Tempered Glass with Honeycomb accessiores
3. Non-Dimmable/ Dali-Dimmable / DMX-Controller
4. L70 @50,000h

CCT (COLOUR TEMPERATURE)

1. 2700k/ 3000k/ 4000k/ RGB/ RGBW

CRI

1. CRI>80

MOUNTING TYPE

1. Surface
