MERIDIAN MODERN-1

Description

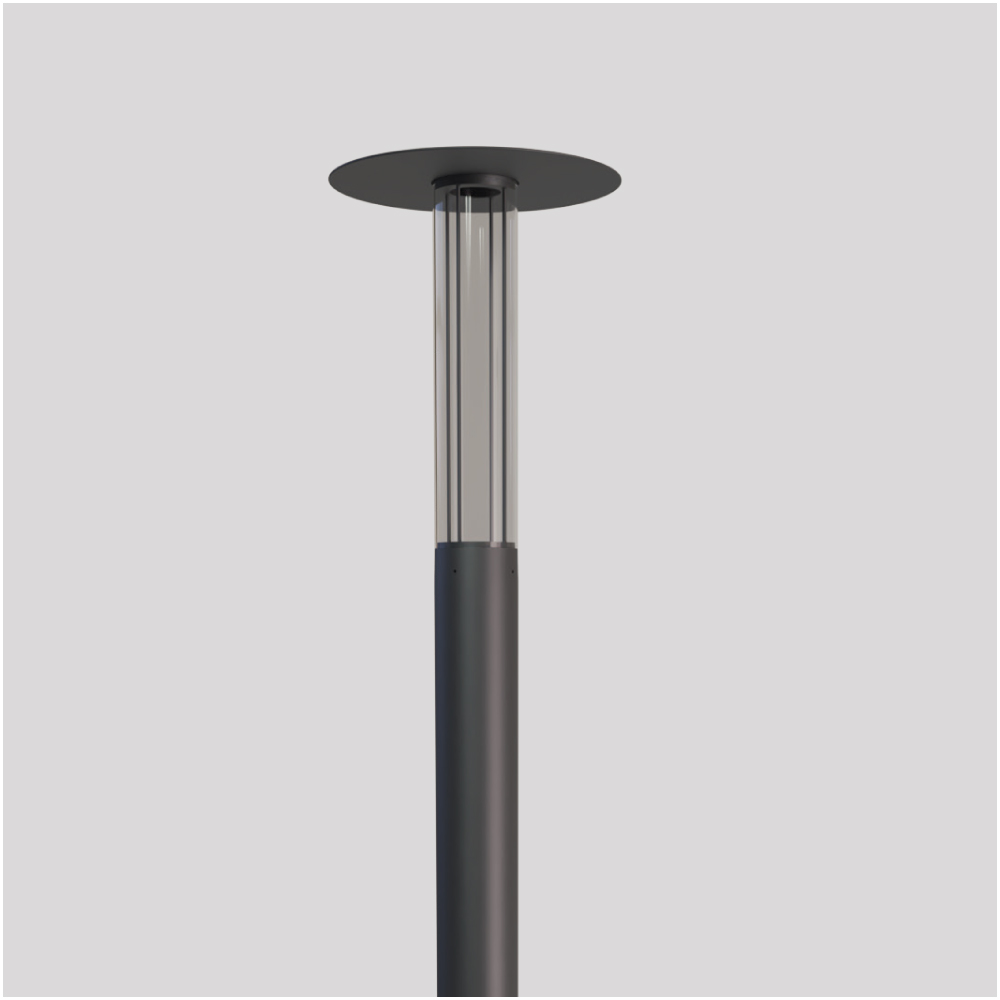

 The Meridian Modern-1 led post top light :

• Post top luminaries made out of die-cast aluminum housing.

• A decorative crown with six nos. dia-cast aluminum arm are provided to support the housing.

• Dia cast aluminum heat sink for proper heat dissipation.

• Clear Glass diffuser for glare-free lighting.

• The fitting are painted with PU paint.

• Die-cast aluminum heat sinks for proper heat dissipation.

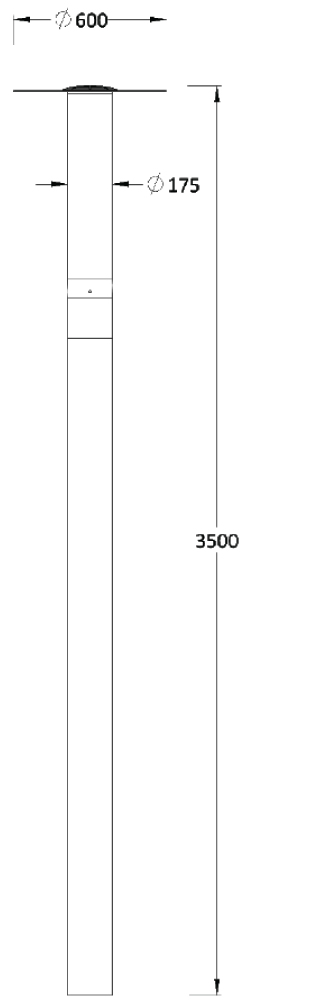

Single Line Diagram

MERIDIAN MODERN-1

Specifications

TYPES

1. Pole Mounted

QUICK INFO

1. Non-Dimmable/ Dali-Dimmable / DMX-Controller
2. L70 @50,000h
3. Aluminium Die-cast
4. Clear glass
5. CRI > 70
6. SDCM < 3

CCT (COLOUR TEMPERATURE)

1. 2700k/ 3000k/ 4000k/ RGB/ RGBW
2. Tunable White 2700K-6500K
