FLEX SIDE BEND 16 LED STRIP

Description

 Flex side bend 16 LED Strip fixture has:

·        Very flexible top-bend in ultra-thin appearance

·        Onsite simple cutting and assembly operation, easy mounting way by adhesive tape

·        Dot-free linear and homogeneous lighting performance

·        Quite a short increment with high density LED array

·        More flexible customization

·        More perfect of brightness and color consistency for the entire run length

·        Much wider luminous surface, no dark area at the edge

·        Higher production efficiency and quality yield by adopting silicone extrusion processing technology

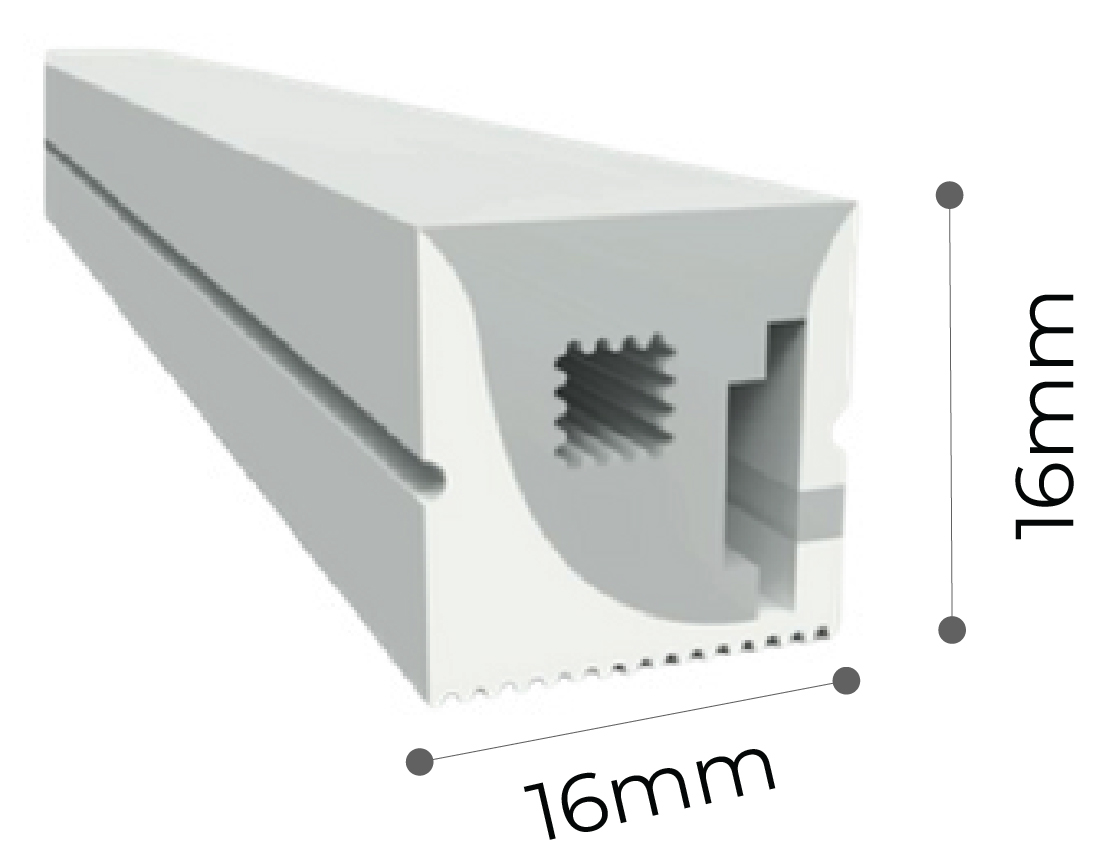

Single Line Diagram

FLEX SIDE BEND 16 LED STRIP

Specifications

TYPES

1. Surface

QUICK INFO

1. SDCM < 3
2. Voltage/ Power 24V DC 4W
3. CRI >90
4. Silicon
5. IP Rating IP67
6. L70 @50,000h

CCT (COLOUR TEMPERATURE)

1. 2700K/ 3000K/ 4000K/ RGB/ RGBW

CONTROL

1. Non-Dimmable/ Dali-Dimmable/ RGB DMX512
