DISC EDGE LIT
Description
DISC EDGE LIT
Disc Edgelit has :
·
Aluminium
Luminaire Housing
·
A
sleek profile with 20mm height
·
Premium
Finish Powder coating
·
Round
frame with disc emitting a circular glow
·
Direct
yet diffused ambient shine
·
High
performance Micro Prismatic diffuser
·
Glare
control & uniform light distribution
·
Energy
efficient LED with high colour rendering
·
LED
PCB mounted on insert design with heat sink
·
Pendant
using suspension cable with M6 bolt and fastener
· Bottom opening for easy maintenance

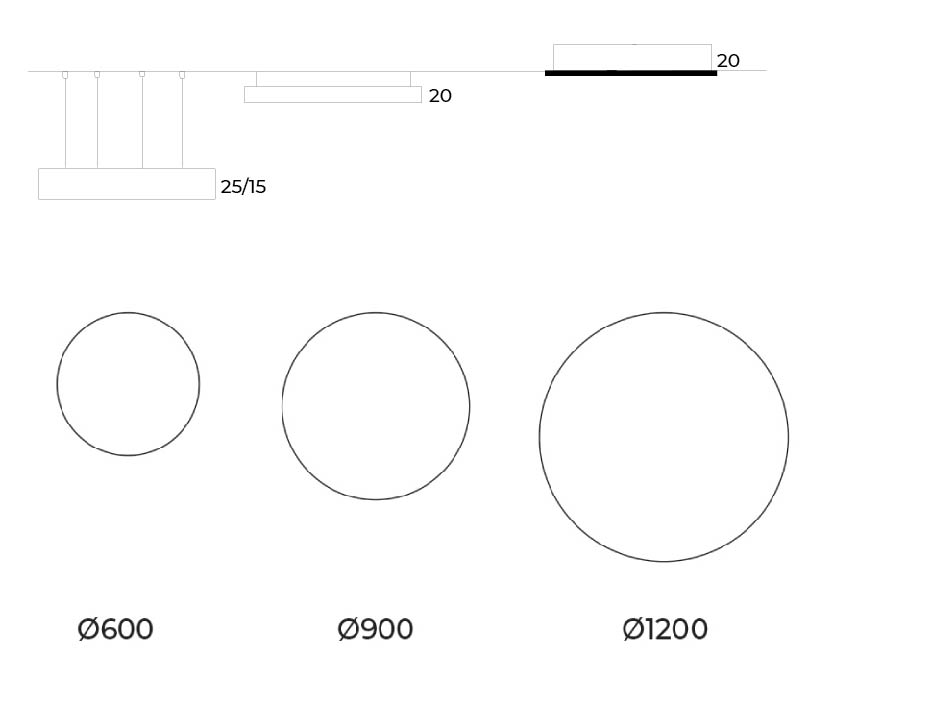

Single Line Diagram
Pendant/ Surface/ Recessed
DISC EDGE LIT
Specifications
LED
- CRI ≥ 90
TYPES
- Pendant/Surface/Recessed
QUICK INFO
- Aluminium
- 3 SDCM
- Double Prismatic Diffuser
- 3000K/ 4000K/ 5700K/ Tunable White 2700K-6500K
- L70 @50,000h
- ON/OFF/, DALI-2 DT6 / DALI-2 DT8/ DALI +
- ON-OFF / ON-OFF (FLICKER FREE)
