DAISY CRESENT LENS
Description
Daisy Cresent Lens sleek linear fixture has :
• Extruded Aluminium Luminaire Housing
• Premium Finish Powder coating
• Snap fit system with No visible screw
• Deep recessed lens System
• Beam angles ranging from 30°, 50° and widespread 80°
• Energy efficient LED with high colour rendering
• LED PCB mounted on insert design with heat sink
• Pendant using suspension cable with M6 bolt and fastener
• Lens and Prismatic diffuser available as option

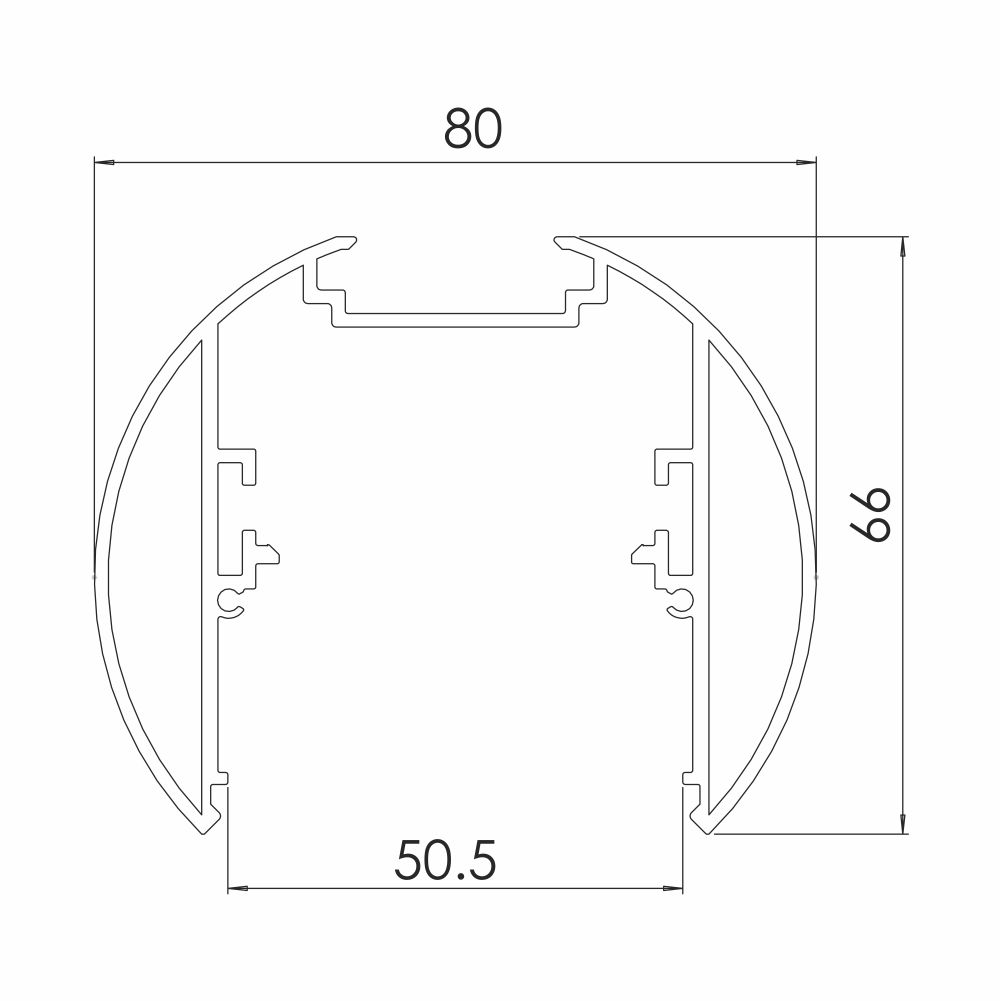

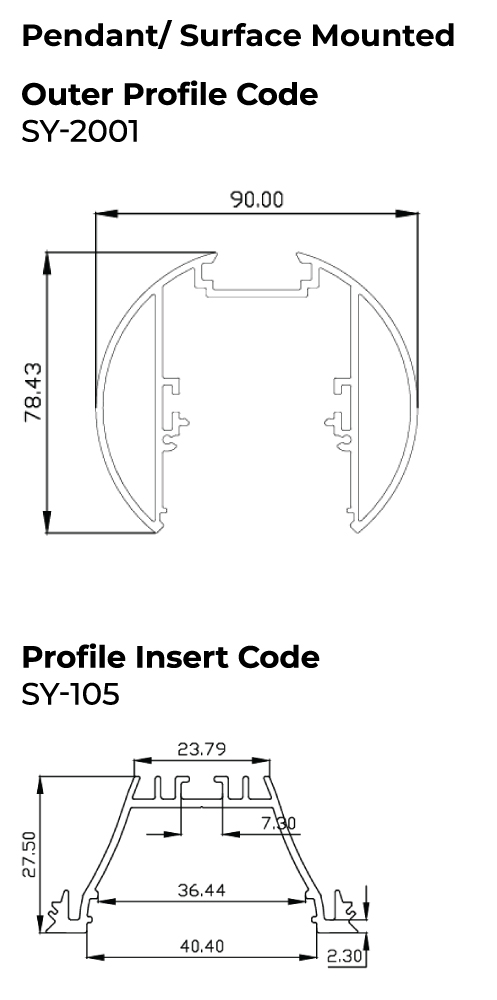

Single Line diagram
Pendant/ Surface
DAISY CRESENT LENS
Specifications
TYPES
- Pendant/Surface/Recessed
QUICK INFO
- CRI >90
- L70 @50,000h
- ON/OFF/, DALI-2 DT6 / DALI-2 DT8/ DALI +
- 3000K/ 4000K/ 5700K/ Tunable White 2700K-6500K
- ON-OFF/ON-OFF (FLICKER FREE) / DALI-2 DT6 / DALI-2 DT8 /DALI +
- Aluminium
- 3 SDCM
- Lens
